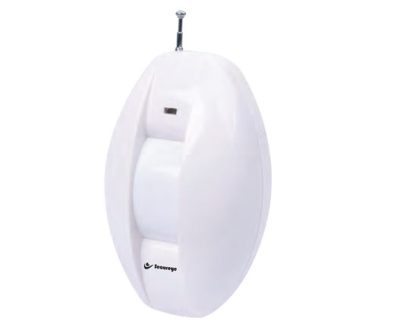

Wireless Curtain PIR Motion Sensor – CPIR-100A
- Description
- Reviews (0)
Description
- escription : Wireless Curtain PIR Motion Sensor
- Model No : CPIR-100A
- Newly-developed dual element passive infrared sensor unit;
- Wireless transmitting digital signal to control panel;
- Intelligent logic control, eliminate false alarm;
- Low power indication by LED indicator;
- Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;
- Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust;
- Selectable detection sensitivity (standard/high) for different environmental requirements;
- SMT adopted, RF and EMI Immunity;
- Low power consumption, long battery life;
- Adjustable detecting distance
The wireless Curtain PIR Motion detector is an INPUT DEVICE, The CPIR- 100A PIR motion detector is designed to provide detection of criminal intrusion through door frames and window frames into a protected area by sensing infrared energy (heat) emitting from an intruder’s body moving through a protected area. The MOTION SENSOR is commonly referred to as a PIR, which stands for passive Infrared. Upon detection of intrusion, the CPIR-100A automatically generates an alarm signal to control panel. The sensor also provides a tamper contact output. The unit is RF and EMI Immunity to interferences produced by radio device. The unit is can be wall-mounted or Ceiling mounted by means of a bracket.
Technical Specification
| Operating Voltage | 2X3V “AA” Battery |
|---|---|
| Detection Range | Vertical angle 15degree, Horizontal angle 90 degree, 9m |
| Standby Current | less than 25uA |
| Alarm Current | less than 15mA |
| RF Immunity | > 20 V/m 10 – 1000 MHz |
| Sensitivity | > 3300V/W |
| Noise(Vp-p) | <200mV, (mVp-p)(25°C) |
| Transmitting Freq. | 433.92MHz |
| Transmitting Distance | minimum 100m( in the open area) |
| Temperature Range | -10°C to +50°C |
| Relative Humidity | 90% (25°C ) |
| Installation Mode | Wall mounted by bracket or Ceiling Mounted |
| Installation Height | 2m(Wall mounted by bracket), 5-9m (Ceiling Mounted) |
| Housing | High-impact ABS |
| Dimensions | 110×69.50x40mm (HxWxD) |
| Applications | For indoor use. Corridor, Office, Room, Museum, Library, Finance Room, Warehouse, etc |
