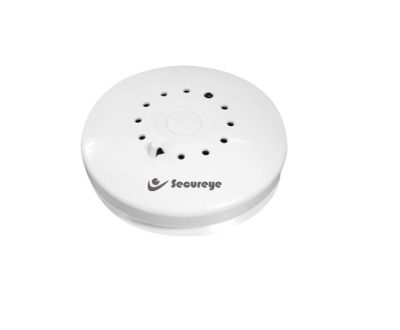

Smoke / Heat Detector – DT-02
- Description
- Reviews (0)
Description
- Description : Smoke and Heat Detector
- Model No : DT-02
Features
- Photoelectric detection method
- Detect Heat(Temperature) and Smoke
- Use low-power CMOS microprocessor
- Special moisture-proof design
- Independent / Wired output/ wireless output(optional)
- With manual testing, manual reset function
- Stable and reliable performance
- Sound and light alert when triggered Features
Technical Specifications
| Working Voltage | 9VDC/12VDC |
|---|---|
| Precision | 3 Degree C |
| Transmission Distance | 100m |
| Wireless Frequency | 433MHz |
| Trigger Temperature | 70°C |
| Smoke Sensitivity | In accordance with UL Standard 217 |
| Trigger Current | 10-30mA |
| Static Current | 10uA |
| Sound Volume | 85dB in 10 Feet |
| Operating temperature | -10degree ~ +50degree |
| Relative humidity | <95% |
| Size (R X H) | 107 X 36mm |
