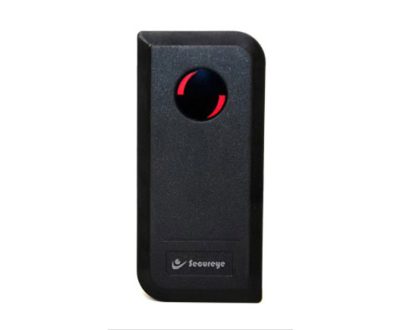

Proximity HID Mifare Smart Card Reader – S-R3EHM
- Description
- Reviews (0)
Description
- Description : Proximity + HID + Mifare/Smart Card Reader
- Model No : S-R3EHM
- Waterproof, conforms to IP66
- Wiegand 26~37 bits output (default: 26bits)
- Card type: HID card, EM card & Mifare card
- Reading range: 2 ~ 7cm
Technical Specification
| Operating Voltage | 9~24V DC |
|---|---|
| Frequency | 125KHz & 13.56MHz |
| Card Type | 125KHz – EM & Hid Card 13.56MHz – Mifare Card |
| Reading Distance | 2 ~ 7 CM |
| Output Format | Wiegand 26 bits (26~37 bits available upon request) |
| Operating Temperature | -40ºC ~ 60ºC (-40ºoF ~ 140oºF) |
| Standby Current | < 25mA |
| Operating Humidity | 10%~95% RH |
| Index of Protection | IP66 |
| Dimensions | 10.2L x 4.8W x 2.0H (cm) |
