Description
- Description : Photoelectric Beams
- Model No : S-PB

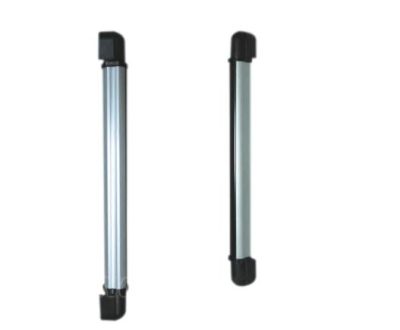

The Photoelectric Beams is an INPUT DEVICE that is made up of a two part set of detectors that emit a fine invisible PIR beam between them. The unit is triggered it the beam is interrupted by an intruder passing through it.
Technical Specification
| Working Voltage | 10~18VDC |
|---|---|
| Wireless Frequency | 433 MHZ or Wired |
| Transmission Range | 100m |
| Working Current (mA) | Receiver ≤35mA; Transmitter≤75mA |
| Static Current(uA) | 3 |
| Number of beams | 2 or 3 or 4 or 6 or 8 or 10 |
| Operating Temperature | -10degree – +50degree |
| Relative Humidity | <80% |
| Response time | ≤1S |
| Size | (H X W X D)115 X 65 X 35mm |
| Applications | For indoor or outdoor use. Wall, Fence of the house, Big Windows, Other Fences |
