Description

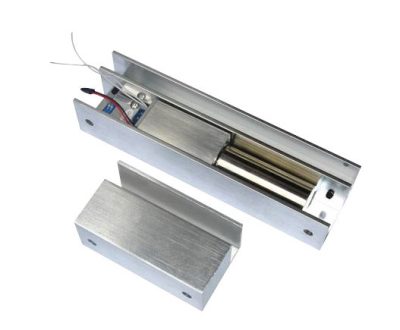

- Description : Fully Frameless Glass Door Lock
- Model No : S-FGD
- Glass thickness : 8~15mm
- Size: 205L x 58M x 46H(mm)
- Net Weight: 1.6Kg
- Standard structure: stainless steel panel
- Suitable for : fully frameless glass door
- Opening mode : 180 swing double door
Technical Specification
| Fail Safe | Locked when energized |
|---|---|
| Face Plate | 205Lx35WX41H(mm) |
| Strike | 90Lx25Wx2H(mm) |
| Bolt | 16mmDIA,stainless steel 16mm throw |
| Autolock Time Delay | 0, 3, 6, 9sec |
| Signal Output | Door status Output, NC/COM |
| Voltage | DC12V |
| Start Current | 900mA |
| Standby Current | 150mA |
| Solid Bolt | Polishing housing, 800Kg Holding Force |
| Suitable For | Fully Frame Less Glass Door |
| Surface Temp | Low Temperature |
| Induction Distance | 8mm |
| Operating temp | -20ºC ~ 60ºC |
| Operating Humidity | 0~90%(non-condensing) |
| Special Designed | Tested to 500000 cycles |
| Face place material | High Aluminum Finished |
