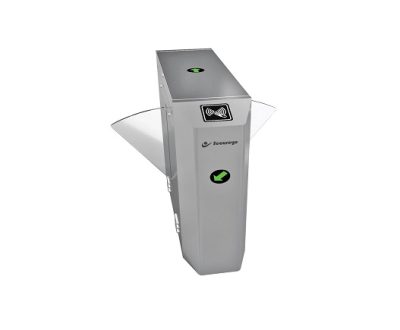

Dual Core Bridge Flap Barriers – S-FB2000S
- Description
- Reviews (0)
Description
- Description : Dual Core Bridge Flap Barriers
- Model No : S-FB2000S
- Cabinet & Internal Structure is in 304 SS grade.
- Flap Material is in Acrylic
- Unlock Time 0.6 second
- Passing Speed 30-40 Person/Min.
- Passing Width 500-600mm Per Lane
- Power Supply AC220, 50Hz
- Humidity 95%
- Operational Voltage Motor (24V)
- Working Temp -10°C to +60°C
- Dimension Excluding Bars (H980xW300xD1200mm)
Technical Specifications
| Outside Housing Material | 304 stainless steel |
|---|---|
| Internal Structure | 304 Stainless steel Cover |
| Communication port | Weigand/RS485/RS232 |
| Power voltage | AC220 ± 10%, 50Hz |
| Drive Motor | DC motor 24V/40W |
| Relative humidity | ≦ 95%, None-condensation |
| Open | direction of flap Double |
| Gate opening/closing time | 0.6 Second |
| Working Current | ≤ 2000 mA |
| IP Degree | IP55 |
| Length of the bar | 260mm |
| Width of passage | ≤600 mm |
| Pass speed | 30 ~40 Person / Minutes |
| Dimension | 1200*300*980mm |
| Operation condition | -10°C ~ 60°C |
