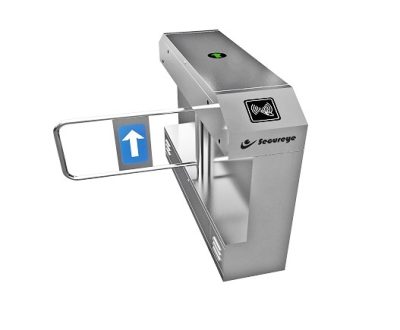

Bridge Swing Barrier gates S-SBB1200
- Description
- Reviews (0)
Description
- Description : Bridge Swing Barrier gates (Arm length 600mm)
- Model No : S-SBB1200
- Length of Swing Arm 1200mm
- Entering passing time in power 3 second
- Open & closing time 1 to 2 second
- Passing Speed 30-40 Person/Min.
- Transmission Angle of swing arm 90 degree
- Swing Direction (Single way/ Double way)optional
Technical Specification
| Outside Housing | Material 304 stainless steel |
|---|---|
| Internal Structure | Steel frame structure |
| Open Angle | 90° |
| Drive voltage | AC12V+AC18V |
| Communication port | Wiegand/RS485/RS232 |
| Power voltage | AC220 ± 10%, 50Hz |
| Drive Motor | DC motor 24V/40W |
| Open direction | Single & Double (Optional) |
| Gate opening/closing time | 4 ~ 6 second |
| Communication Distance | Less than 10 meters |
| Working Current | ≤ 2000mA |
| IP Degree | IP55 |
| Installation place | Outdoor and Indoor |
| Width of passage | 1200mm |
| Pass speed | <= 30 Person / Minutes |
| Dimension | 1200x280x980mm |
| Operation condition | -30°C ~ 70°C |
