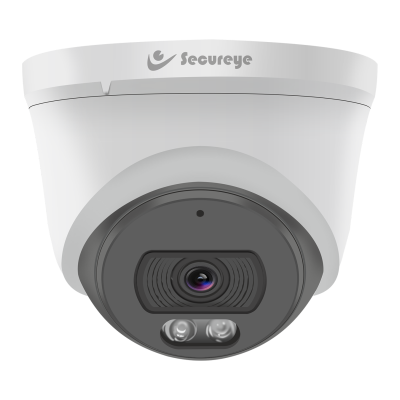

2MP IP, Dome Camera, 30M IR, PoE, Audio, 2.8mm, SP-C2XN-I3, Vivid Pro Series – Secureye
- Description : 2MP IP, Dome Camera, 30M IR, PoE, Audio, 2.8mm, SP-C2XN-I3, Vivid Pro Series
- Model No : SP-C2XN-I3
KEY FEATURES
• Metal+Plastic Housing
• Up to 1920×1080@30fps
• S+265/H.265/H.264
• Min. Illumination Color: 0.04Lux@F2.2
• Smart IR, IR Range: 30m
• Built-in Mic
• Operating Conditions -30°C ~ 60°C, 0 ~ 95% RH
• POE
• Support Motion Detection
- Reviews (0)
- SPECIFICATIONS
Only logged in customers who have purchased this product may leave a review.
| Camera | |
| Image Sensor | 1/3″CMOS |
| Min. Illumination | Color:0.04Lux@(F2.2,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s-1/100,000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| WDR | DWDR |
| S/N | >37dB |
| Angle Adjustment | 0-340o; 0-75o; 0-360o |
| Lens | |
| Lens Type | Fixed |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F2.2,Fixed |
| Field of View | 100o(H); 53o(V); 114o(D) |
| DORI Distance | Detect: 40.0m Observe: 15.9m Recognize: 8.0m Identify: 4.0m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | 30m |
| Wavelength | 850nm |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k-4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz |
| Image | |
| Max. Resolution | 1920×1080@30fps |
| Main Stream | Pal:25fps(1920×1080, 1280×720, 704×576, 640×480) NTSC:30fps(1920×1080, 1280×720, 704×480, 640×480) |
| Sub Stream | Pal:25fps(704×576, 704×288, 352×288, 640×360) NTSC:30fps(704×480, 704×240, 352×240, 640×480) |
| BLC | YES |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-auto/Manual |
| OSD | 1 region; 16*16/32*32/48*48 |
| Privacy Mask | 4 Regions |
| Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection |
| Network | |
| System Compatibility | HTTP;TCP/IP/UDP;ICMP;DHCP;DNS;NTP;IPv4;Telnt;Unicast |
| Remote Connection | Onvif Profile S/T |
| PC CMS Software | 1 |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self adaptive Ethernet port |
| Built-In Mic | Yes |
| General | |
| Web Client Language | English |
| Operating Temperature | -300C ~ 60C0 |
| Operating Humidity | 0 ~ 95% |
| Storage Temperature | -300C ~ 60C0 |
| Storage Humidity | 0 ~ 95%(non-condensing) |
| Power Supply | POE 802.3af;MAX 6W |
| Protection | Surge protection 2000V;Lightning proof 6000V |
| Boundary Dimensions | 117(L)117(W)96(H)mm |
| Package Dimensions | 140(L)140(W)120(H)mm |
| Gross Weight | 0.34Kg |
| Net Weight | 0.24Kg |
