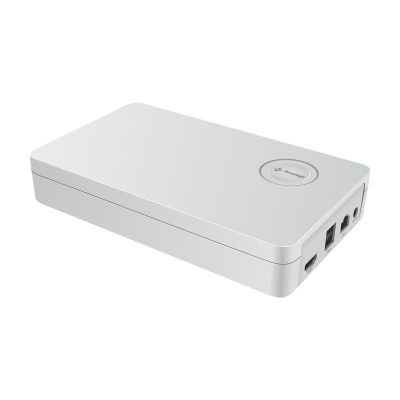

1HDD 5CH NVR Basis, Plastic Housing SP-R105 – Secureye
- Description : 1HDD 5CH NVR Basis, Plastic Housing SP-R105
- Model No : SP-R105
KEY FEATURES
- Up to 5-ch IP camera inputs
- Access/forwarding bandwidth at 60Mbps / 40Mbps
- S+265, H.265, S+264, H.264 video formats
- 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2 preview decoding capacity
- 4-ch synchronous playback
- 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2 playback decoding capacity
- Up to 6TB capacity for each HDD
- 1×HDMI output
- HDMI output at up to 1080P resolution
- 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
- S+ 265 compression effectively reduces the storage space by up to 75%
- Support cloud upgrade
- Reviews (0)
- SPECIFICATIONS
Only logged in customers who have purchased this product may leave a review.
| Video and Audio | |
| Access Channel | 5 |
| Incoming Bandwidth | 60Mbps |
| Outgoing Bandwidth | 40Mbps |
| Resolution | 5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Decoding Capability | 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2, 720P(30fps)×5, |
| 4CIF(30fps)×5 | |
| Third-party Camera Access | ONVIF; RTSP |
| HDMI Output | HDMI:1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
| Multi-screen Display | 1/3/4/5/6 |
| Compression | |
| Video | S+265; H.265; S+264; H.264 |
| Audio | G711A; G711U; ADPCM_DIV4 |
| Stream Type | Video; Video & Audio |
| Network | |
| Network Protocol | ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; UPnP |
| Mobile Phone Access | Android; iOS; P2P_A |
| System Compatibility | CGI; SDK |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Record Playback | |
| Multi-channel Playback | 4 |
| Record Mode | Alarm recording; Schedule recording |
| Storage Method | Local HDD |
| Backup | USB storage device |
| Playback Function | Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full screen/backup (video Editing) |
| Alarm | |
| General Alarm | Motion; Mask Alarm; Video Loss |
| Exceptions Alarm | IP Conflict; MAC Conflict; Network Disconnected; No disk; Illegal Access; Disk Full; Disk R/W error; Video Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; POE overloaded; IPC voltage abnormal; RTC failure |
| Intelligent Analytics | |
| AI by Camera | Advanced Intelligence |
| Storage | |
| HDD Capacity | Up to 6TB capacity for each HDD |
| External Port | |
| USB | 2×USB2.0 |
| HDMI | 1×HDMI |
| Network Interface | 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| SATA | 1×SATA interface |
| General | |
| UI Language | English/Spanish/Italian/Turkish/French/Polish/German/Ukrainian |
| Power Supply | DC12V 1.5A |
| Power Consumption | <10W(without HDD&without PoE) |
| NetWeight | 0.2kg |
| GrossWeight | 0.47kg |
| Boundary Dimensions | 203(L)120(W)39(H)mm |
| Package Dimensions | 215(L)55(W)220(H)mm |
| Operating Temperature | -100C ~ +450C |
| Operating Humidity | 10% ~ 90%RH |
| Storage Temperature | -100C ~ +450C |
| Storage Humidity | 10% ~ 90%RH |
| Package Kit | Network Video Recorder; Screw pack; Mouse; Power adapter |
